Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Standard

Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Standard

Tên thương hiệu: Honghao
Mã số: HH-1858
MOQ: 1
giá bán: $750-800
Thông tin chi tiết
Nguồn gốc:
Trùng Khánh, Trung Quốc
Lớp thép:
Thép không gỉ
Vật liệu:
Thép không gỉ
Độ bền kéo:
1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA
Sức chịu đựng:
± 1%
Tải tối thiểu tải:
125kn đến 30804kn
Tải chân đơn:
25KN đến 6161KN
Tải hai chân:
45kN đến 11089KN (0 ~ 90 °), 35KN đến 8625KN (90 ~ 120 °)
Cân nặng:
0,67kg/m đến 180,13kg/m
Bán kính uốn tối thiểu:
1.5 dia
Chu vi trượt ngắn nhất:
50 lần đường kính sling
Yếu tố an toàn:
5 (D≤60mm), 6.31-0.022d (60 150mm)
Dịch vụ xử lý:
Uốn cong
Xử lý bề mặt:
Được thêu hoặc không thêu
tiêu chuẩn:
ASTM, GB, DIN, JIS, AISI, BS
Đóng gói:
Cuộn 1000m, cuộn 500m, cuộn 300m, cuộn 200m hoặc tùy chỉnh
Làm nổi bật:

stainless steel wire rope sling

,

galvanized lifting wire rope

,

ANSI standard wire rope

Mô tả sản phẩm

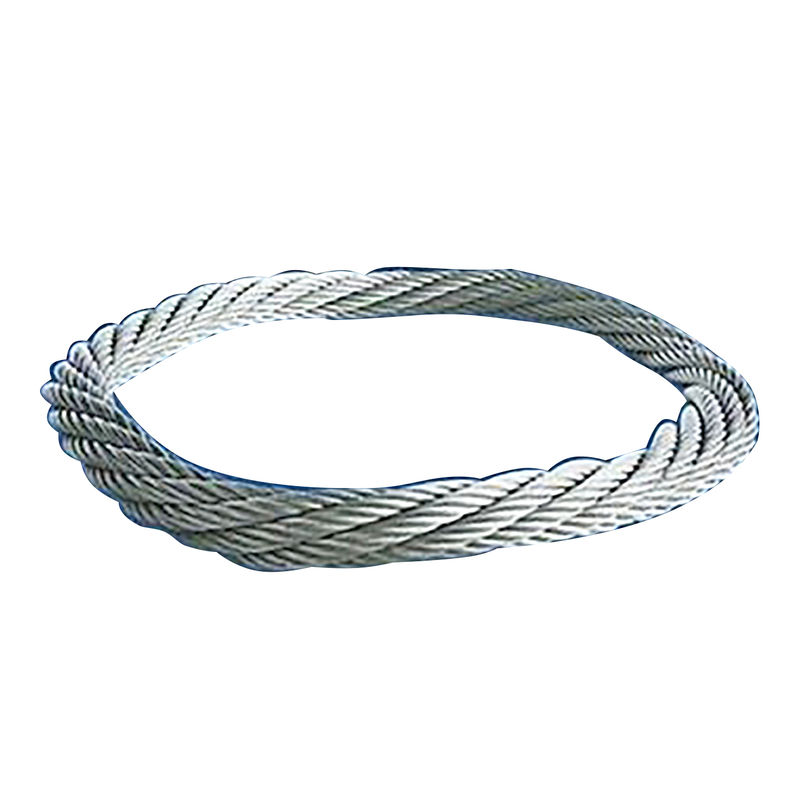

Stainless Steel Grommet Wire Rope Lifting Sling Pressed Endless with Bending Processing Service ANSI Standard
Product Attributes
Attribute Value
Steel Grade Stainless Steel
Standard AISI
Type Galvanized
Application Hanging lamp, pergola, flagpole, clothesline etc.
Alloy Or Not Non-Alloy
Special Use Cold Heading Steel
Tolerance ±1%
Processing Service Bending
Grade Stainless Steel
Delivery Time 15-21 days
Product Name Wire Rope Sling
Material Stainless Steel
Product Specifications
Standard ASTM
Place of Origin China
Brand Honghao
Surface Galvanized, Ungalvanized
Tensile Strength 1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA
Material Stainless Steel / High Carbon Steel
Standard ASTM, GB, DIN, JIS, AISI, BS
Term of Payment L/C, T/T, D/P, Western Union, One Touch
Packing 1000m roll, 500m roll, 300m roll, 200m roll or as your requirements
Product Features
  • Grommet sling spliced by wire rope with class B or AB, fiber core, nominal tensile strength 1670MPa
  • Available in three surface treatments: galvanized with lubrication, galvanized without lubrication, and ungalvanized
  • Breaking load varies based on wire rope capability selection
  • Minimum breaking load is 5 times working load with adjustable safety factors
  • Ideal for limited space lifting with minimum sling circumference of 50 times sling diameter
  • Minimum bend radius of lifting point area not less than 1.5 times diameter
  • Material: Galvanized or Stainless Steel
  • High tensile strength, good flexibility, low elongation
  • Widely used in conveyor belt systems
Technical Specifications
ITEM No. Min. Breaking Load (kN) Single Leg Working Load (kN) Double Legs Working Load (kN) 0~90° Double Legs Working Load (kN) 90~120° Weight (kg/m)
WJT15 125 25 45 35 0.67
WJT18 181 36 65 51 0.97
WJT21 246 49 88 69 1.33
Product Images
Packing & Delivery
Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Standard 6

Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box, or as per customer's requirements.

Company Profile

We have been in the line of international business for more than 15 years.

FAQ

1. Who are we?
We are based in Chongqing, China, starting from 2022, selling to North America (25.00%), Eastern Asia (20.00%), Southeast Asia (20.00%), South America (10.00%), Mid East (10.00%), Oceania (5.00%), Central America (5.00%), Eastern Europe (5.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.

3. What can you buy from us?
Electric Cars, New Energy Vehicle, EV car.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW; Accepted Payment Currency: USD, EUR; Language Spoken: English, Chinese.
